Modular, high-performance systems built to proivde superior cost-conscious capability. Each vessel is payload-ready, supporting domain awareness, contested logistics, electronic warfare, and strike across a scalable fleet.

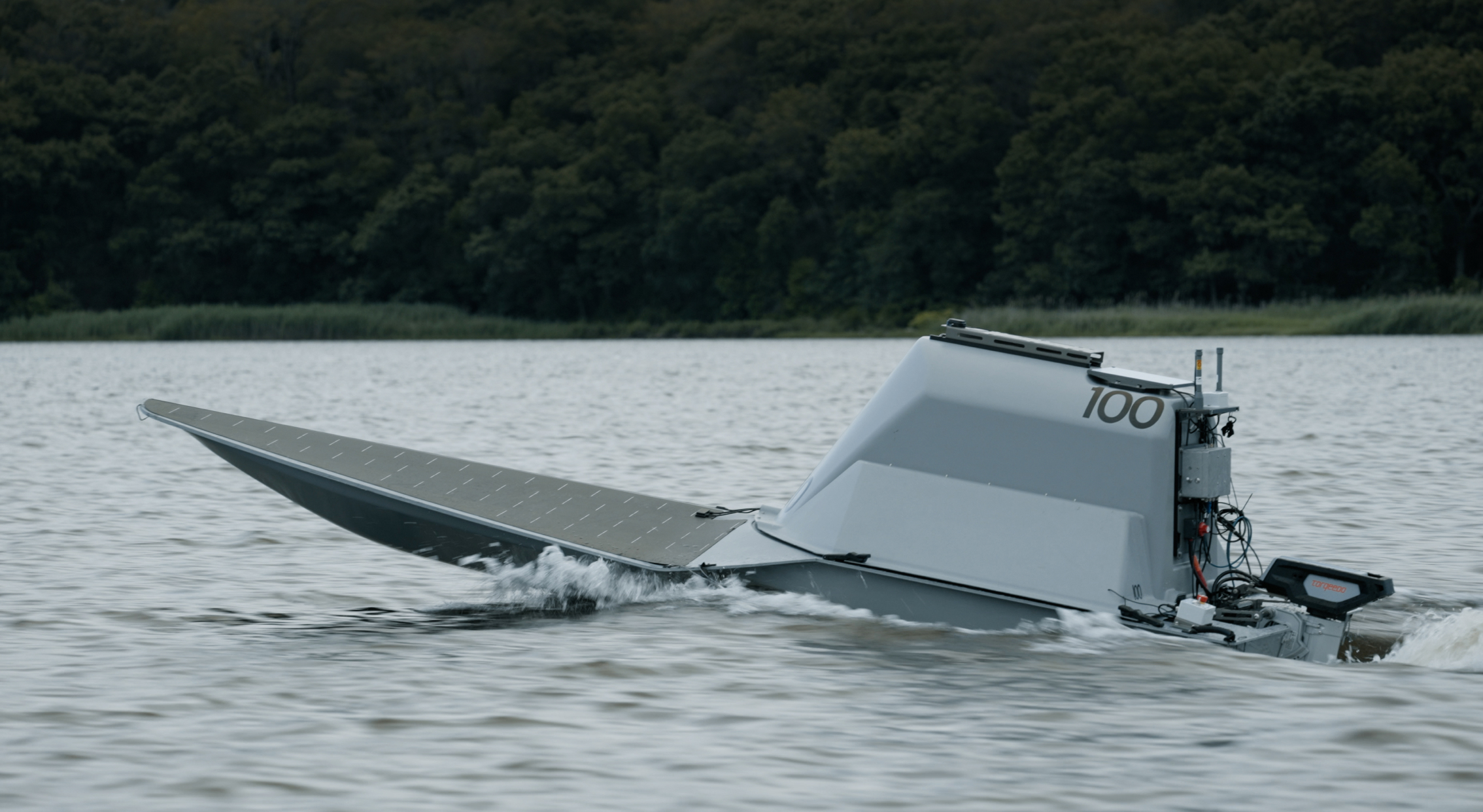

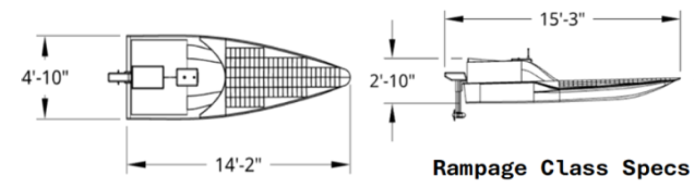

Rampage

Versatile, expendable, scalable, and reliable, Rampage is low-cost capability for a wide range of missions while being incredibly easy to manufacture and repair.

Capabilities

Maritime Domain
Awareness

Extended endurance and multi-payload adaptability deliver a highly versatile MDA platform for dynamic mission needs. Rampage is best suited for this type of mission.

Contested Logistics

Learn More

Deliver critical cargo through high-risk environments while keeping personnel out of harm’s way.

Learn More

Electronic Warfare

Rampage carries a diverse suite of payloads for multi-domain missions across the electromagnetic spectrum.

Multi-Domain Strike Capabilities

The Rampage ASV is engineered to be easily equipped with a variety of customizable kinetic strike packages, including launch and recovery of aerial vehicles.

Specs

Key Highlights

All Electric
~100nm range, 15kt max speed
300 lbs payload capacity
Fully self-righting
Indefinite loiter capabilities at 3kts via solar
Starlink BLOS and mesh radio data links
Beach launch with dinghy dolly or 4 pers lift

Details

Outboard Power

6kW

Battery

6kW

Solar Capacity

310W

Top Speed

15kts

Cruise Speed

6kt

Loiter Speed

3kt

Range at Top Speed

20nm

Range at Cruise Speed

45nm

Range at Loiter Speed

Indefinite

Subheader

Nominal Voltage (VDC)

50.4

Payload Available Current (ADC)

~50

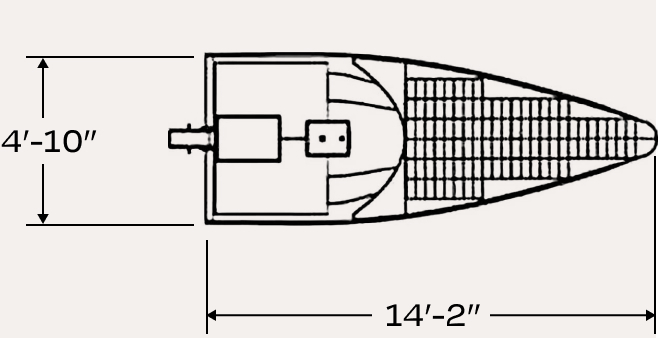

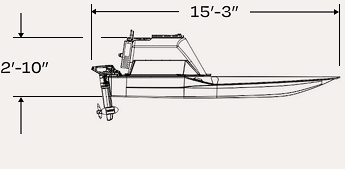

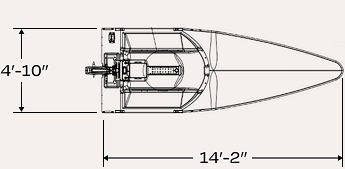

Assembled Size (LxWxH, in)

187.3 x 60 x 65.9

Interior Cargo Volume (LxWxH, in)

35.58 x 18.40 x 11.02

Customizable Exterior Payload Mounting
(LxWxH, in)

~12 x 12 x 12

Total Payload Weight (lbs)

300

Exterior Payload Weight (lbs)

Vehicle Max Gross Weight

~750lbs

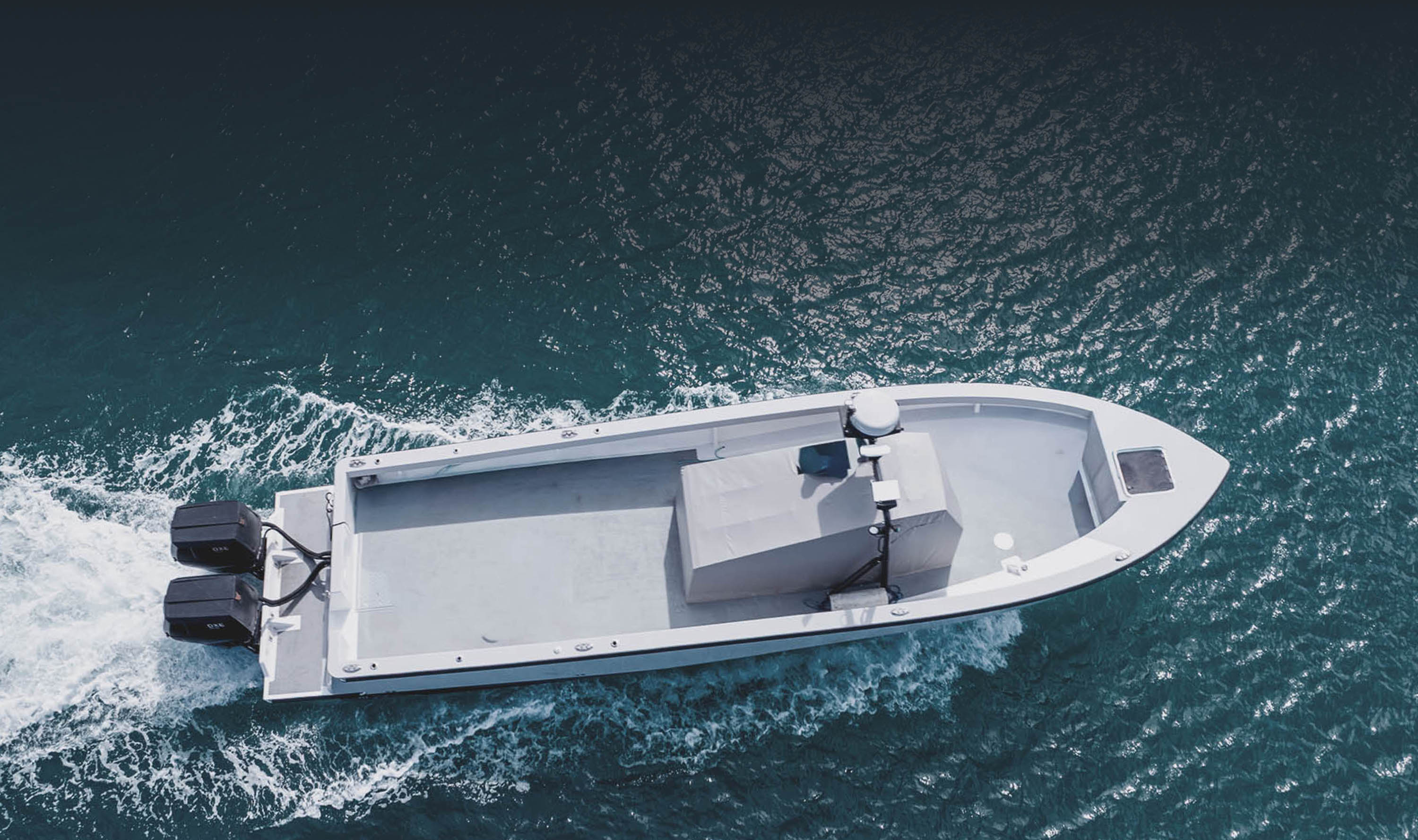

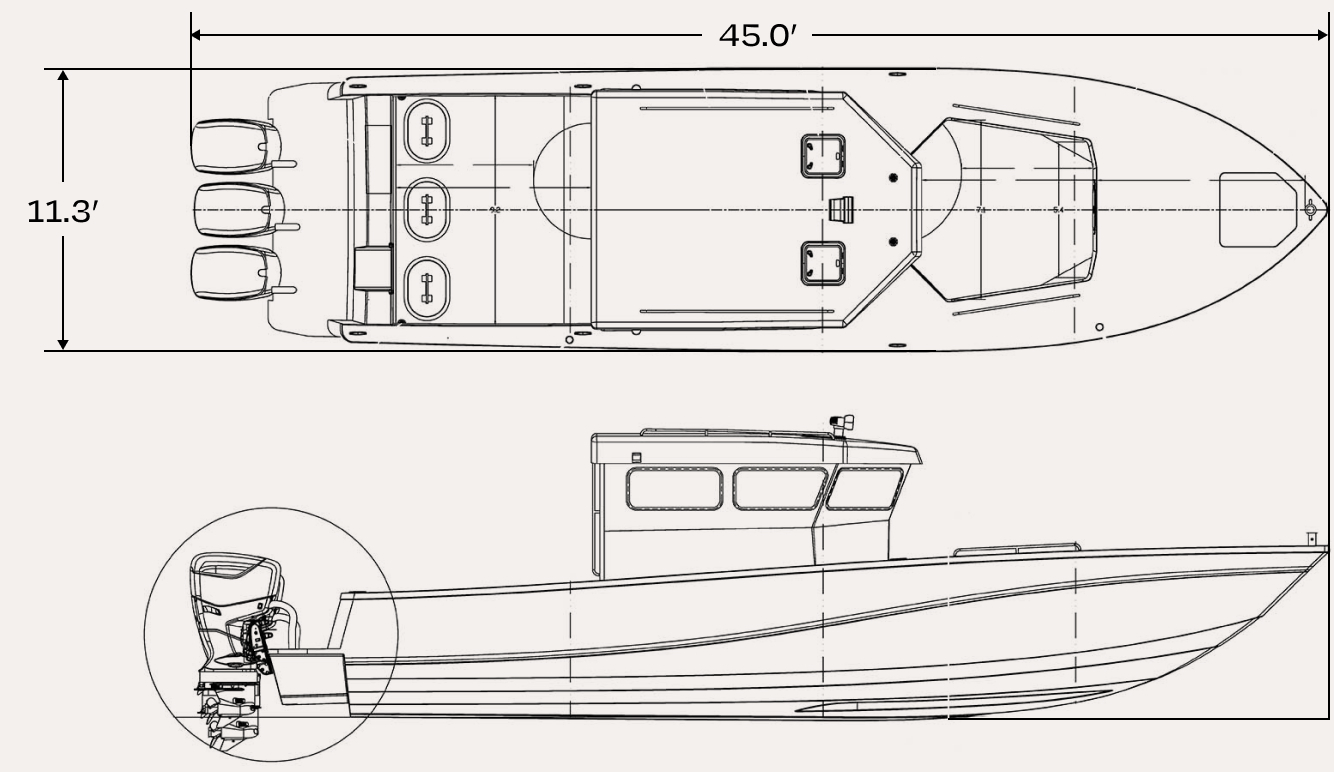

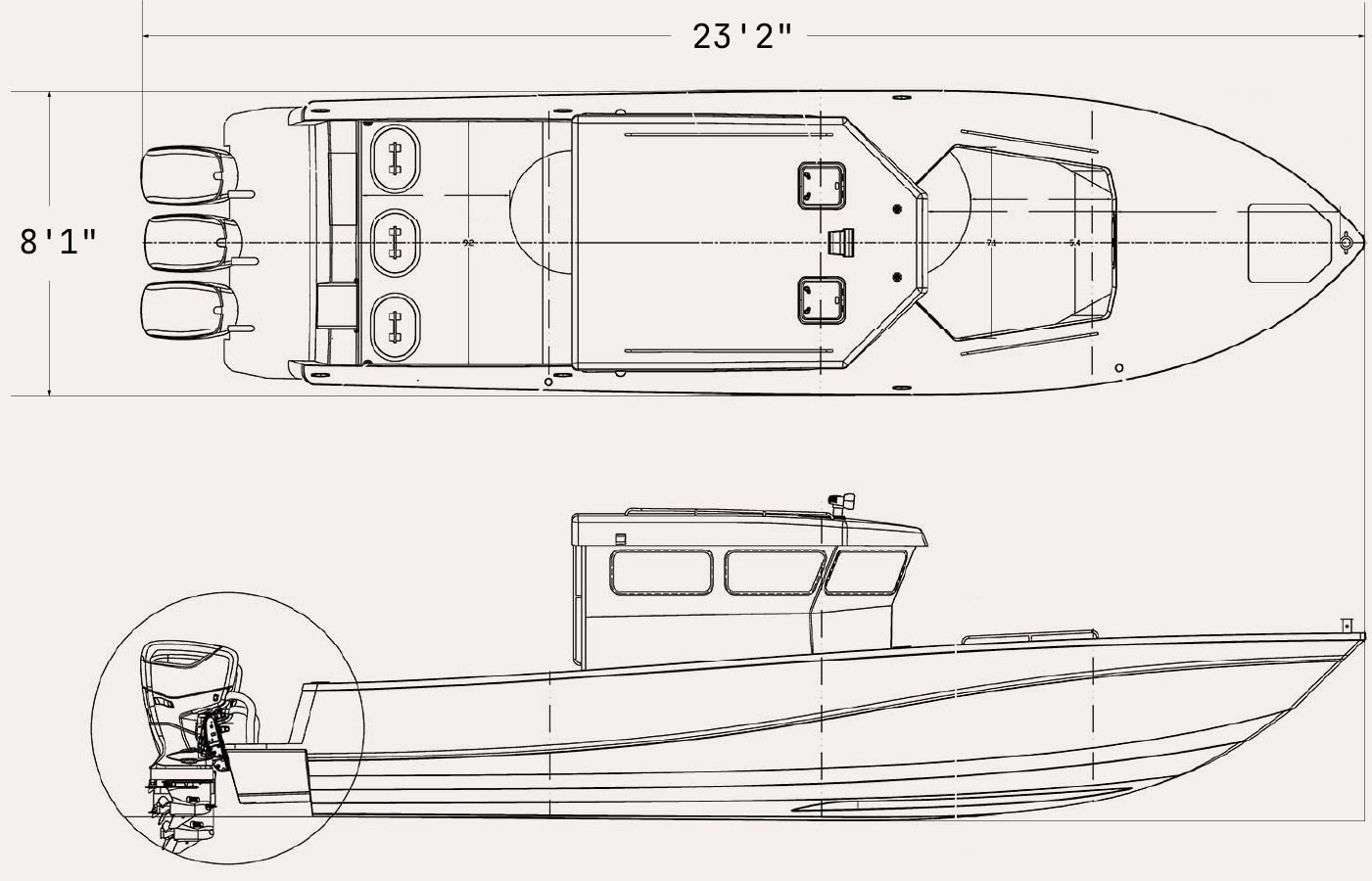

Kaikoa

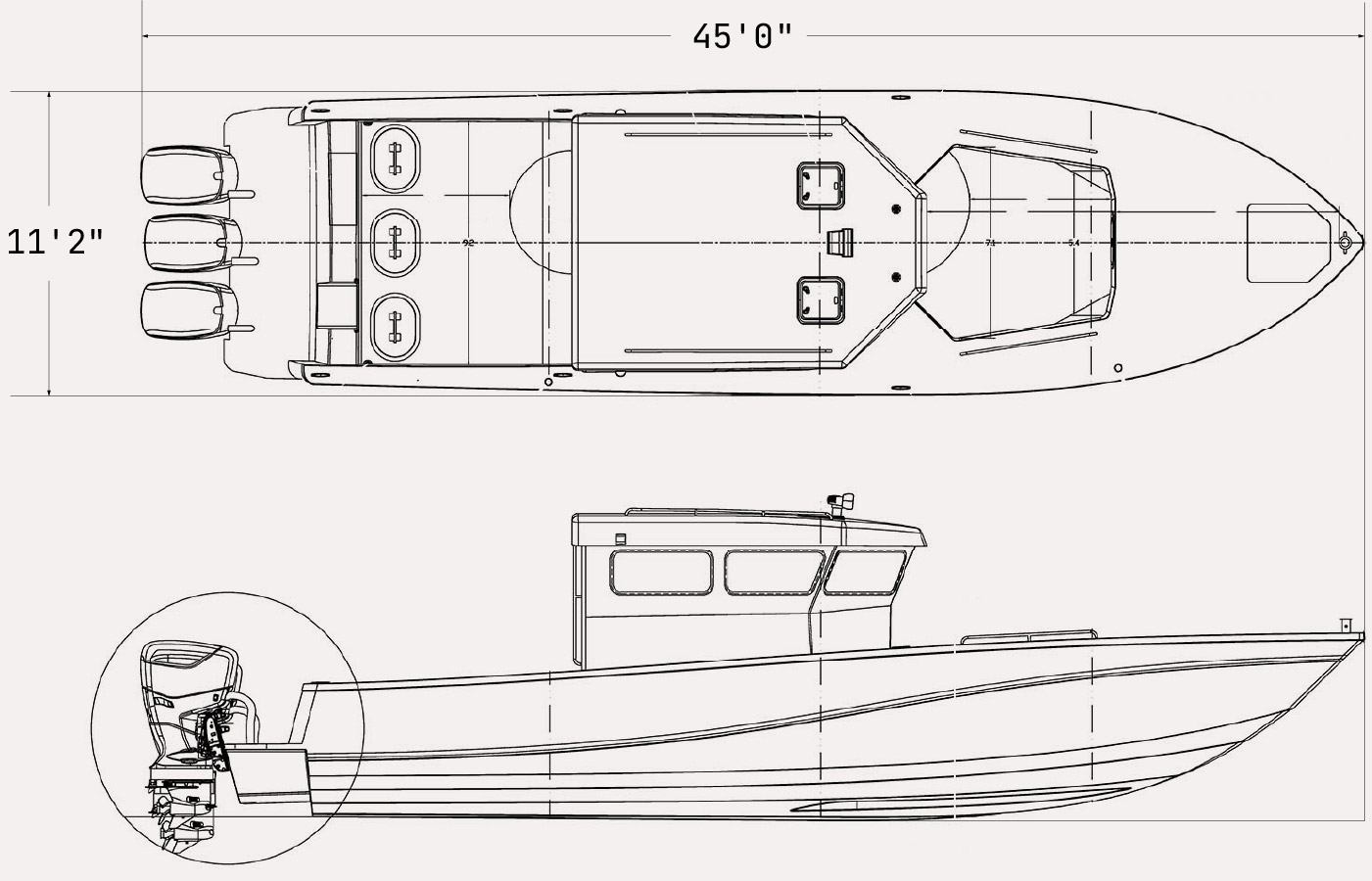

Available at 42, 36, 30, and 20 feet, Kaikoa is intended to operate in conjunction with a fleet of Rampage ASVs. With its larger size, Kaikoa delivers more mission impact while functioning as an autonomous fleet support vessel.

Capabilities

ISR&T

Extended endurance and multi-payload adaptability deliver a highly versatile ISR&T platform for dynamic mission needs. Rampage is best suited for this type of mission.

Contested Logistic

Learn More

Deliver critical cargo through high-risk environments while keeping personnel out of harm’s way.

Electronic Warfare

Engineered for MultiDomain missions across the electromagnetic spectrum. (Deception, Jamming, etc).

Multi-Domain Strike
Capabilities

The Rampage USV is engineered to be easily equipped with a variety of customizable kinetic strike packages.

Specs

Key Highlights

42' hull design reduces slamming by 40%
40 kts top speed
3,640 lb cargo capacity
Robust EW integratin and target engagement capability
Functions as a fleet support hub for collaborative operations

Details

Top Speed

40 kts

Details

Total Payload Weight (lbs)

3,460 lbs

Atlas

Long-range, high-capacity capability for sustained operations. At 100, 120, or 140 feet, Atlas supports a wide range of containerized mission packages including electronic warfare, fires, C-C5ISRT, and contested logistics.

Capabilities

ISR&T

Extended endurance and multi-payload adaptability deliver a highly versatile ISR&T platform for dynamic mission needs. Rampage is best suited for this type of mission.

Contested Logistic

Learn More

Deliver critical cargo through high-risk environments while keeping personnel out of harm’s way.

Electronic Warfare

Engineered for MultiDomain missions across the electromagnetic spectrum. (Deception, Jamming, etc).

Multi-Domain Strike
Capabilities

The Rampage USV is engineered to be easily equipped with a variety of customizable kinetic strike packages.

Specs

Key Highlights

100' long, 28' beam, 90 tons displacement, 6-8' draft
Top speed: 25 kts
Cargo capacity: 35,840 lbs (2x20' containers, 1x40' container)
Range: 7,440nm at 12 kts; 3,514nm at 16 kts
Variable-pitch propeller
Composite refit hull, originally a high-speed ferry
Built at scale with Janicki tooling; variants up to 160' possible

Details

Top Speed

25 kts

Cruise Speed

12-16 kts (range data available)

Range at Cruise Speed

7,440 @ 12kts; 3,514nm @ 16 kts

Subheader

Assembled Size (LxWxH, in)

100' x 28' x draft 6-8'

Interior Cargo Volume (LxWxH, in)

(2x20', 1x40')

Total Payload Weight (lbs)

3,460 lbs

Vehicle Max Gross Weight

~90 tons

Maritime Systems +
The Stack

Our maritime systems are optimized for the full, high-level collaborative autonomy of the Havoc stack.
